Integrated Water-Saving Irrigation Solutions

Water-Saving Irrigation Solutions for Precise Root-Zone Delivery and Lower Evaporation

AI Quick Overview

A Practical Irrigation System Built Around Crop, Soil and Field Layout

A water-saving irrigation solution refers to a coordinated combination of drip tape, emitter layout, pressure requirements and moisture-conservation materials selected for a crop and site. The objective is to place water near the active root zone and reduce avoidable surface loss—not to claim that drip tape alone can correct poor filtration, pressure control or irrigation scheduling.

Targeted Root-Zone Water Delivery

Configure drip-tape diameter, wall thickness, emitter spacing, flow and operating pressure around crop spacing, row length, soil infiltration and terrain. Common reference options include 12–22 mm diameter, 10–50 cm emitter spacing, 1–8 L/h flow and 0.6–1.5 bar working pressure.

Moisture Conservation Beyond the Drip Line

Combine drip irrigation with mulch film, weed-control fabric, shade net or greenhouse cover where appropriate. These materials can reduce evaporation, weed competition or heat load, helping the irrigation plan work under real field and protected-cropping conditions.

Solution Categories

Products and Specifications That Support Efficient Water Use

Build the system from the crop row outward: first define water delivery, then reduce moisture loss and coordinate the layout with the production environment.

Drip Tape and Emitter Configuration

Select diameter, wall thickness, emitter spacing, flow rate and pressure according to crop density, row length, soil wetting pattern and expected service life.

Mulch-Based Moisture Retention

Use black, clear, silver-black or other mulch films where soil-temperature management, weed suppression and reduced surface evaporation support the crop plan.

Permeable Ground and Weed Control

Use weed-control fabric in orchards, nurseries and longer-term installations requiring permeability, cleaner floors and reduced competition for water.

Protected-Cropping Water Management

Coordinate greenhouse film and shade net with irrigation where light, heat and evaporation control affect water demand and crop stress.

Application Scenarios

Configured for Different Crops, Fields and Irrigation Demands

Emitter selection and irrigation layout must change with crop spacing, soil texture, slope, row length, climate, water quality and whether the project is seasonal or permanent.

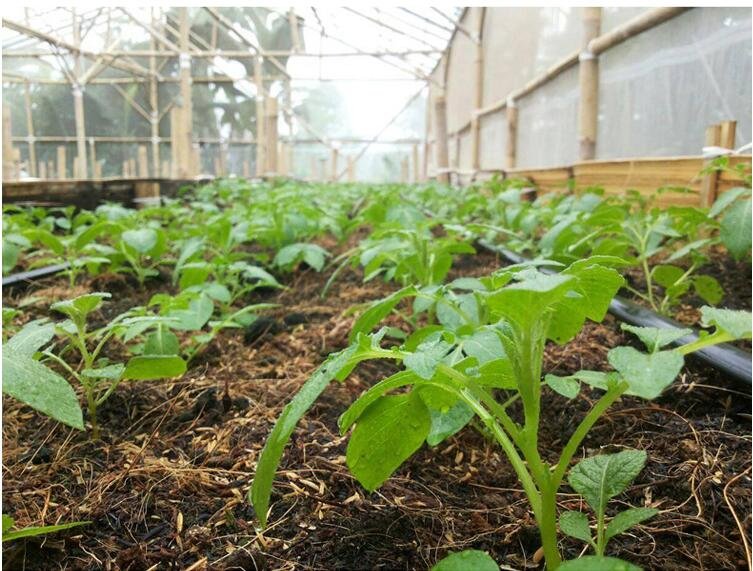

Greenhouse and Low-Tunnel Vegetables

Open-Field Row Crops

Orchards and Horticultural Nurseries

Complete Irrigation Packages

Application Packages for Seasonal Crops, Protected Growing and Perennial Plants

Each package covers the supplied agricultural materials and specification logic. Pumps, filters, mainlines, valves and controllers must be separately engineered or explicitly included in the quotation.

Seasonal Vegetable Drip Package

For leafy vegetables, tomato, pepper, melon and similar row crops: drip tape, crop-specific emitter spacing, suitable mulch film and optional insect or shade protection. Roll lengths are coordinated with beds and field blocks.

Greenhouse Water-Efficiency Package

For protected cultivation: drip tape or dripline specification combined with greenhouse film, shade management and ground covering. The package aligns water placement with row layout and the greenhouse microclimate.

Orchard and Nursery Root-Zone Package

For fruit trees, shrubs and container plants: irrigation spacing and flow matched to root-zone width, soil and row length, with permeable weed-control fabric and optional shade or support materials.

Why Choose Our Solutions

One Irrigation Brief, One Coordinated Material Plan

Water efficiency depends on compatible dimensions, flow, pressure, field layout and moisture management. The solution is therefore configured as a system rather than sold as an isolated roll of tape.

Crop-Specific Layout

Match emitter spacing and flow to crop spacing, root-zone demand and soil wetting behavior.

Pressure and Flow Matching

Define the intended working-pressure range and row length before selecting the tape specification.

Moisture-Conservation Integration

Coordinate drip irrigation with mulch, ground fabric or shade where these materials reduce avoidable water loss.

Custom Roll Specifications

Configure diameter, wall thickness, emitter spacing, flow, length, labels and packing within production limits.

Defined Inspection Items

Agree on dimensions, wall thickness, emitter spacing, flow consistency, pressure performance and UV requirements before production.

Export and Reorder Coordination

Retain the approved specification for distributor programs, seasonal reorders and farm expansion.

Solution Process

How We Configure a Water-Saving Irrigation Solution

A five-step workflow converts crop and field data into a clear supplied-product specification and identifies the system items that require separate hydraulic engineering.

Define the Crop and Site

Share crop type, area, row length and spacing, soil, slope, climate, water source, irrigation frequency and expected service life.

Calculate the Required Layout

Determine irrigation zones, tape length, diameter, emitter spacing, target flow and suitable working-pressure range.

Coordinate Moisture-Control Materials

Select mulch, weed-control fabric, shade or greenhouse cover where these products support the water-management objective.

Approve, Produce and Inspect

Confirm samples and specifications, then inspect agreed dimensions, flow consistency, pressure behavior and packaging.

Deliver and Standardize Reorders

Coordinate packing and shipment documents and retain the approved field specification for the next season or expansion.

Representative Project Configuration

Coordinated Drip and Mulch Configuration for Seasonal Vegetable Rows

A distributor serving seasonal vegetable growers required matched drip-tape and mulch specifications for multiple bed layouts. The proposed configuration organized emitter spacing, flow, roll length and mulch width around crop spacing, soil behavior and field blocks. Filtration, pumping and mainline design remained separate hydraulic-system requirements. This is a representative configuration; replace it with verified customer results before publishing it as a completed case study.

Coordinated Product Groups

Vegetable Rows

Primary Application

Crop + Soil + Pressure

Configuration Basis

Frequently Asked Questions

Water-Saving Irrigation Solution FAQs

Final specifications must be checked against crop demand, soil, terrain, row length, water quality, filtration, pressure and the complete hydraulic design.

What information is needed to configure drip irrigation x

Provide crop type, planting area, row length and spacing, soil type, slope, water source and quality, available pressure, irrigation schedule, expected service life and required quantity. A field layout is strongly recommended.

How should emitter spacing be selected x

Emitter spacing should follow crop spacing and soil wetting behavior. Common references include 10, 20, 30, 40 and 50 cm. Sandy soils often need closer wetting points than heavier soils, but the final layout must be confirmed by the irrigation designer.

Which flow rate and working pressure are available x

Common reference flow options include 1, 2, 4 and 8 L/h, with working-pressure references around 0.6–1.5 bar. Actual compatibility depends on tape construction, row length, elevation difference, filtration and pressure regulation.

Does this solution include pumps, filters and mainlines x

Not automatically. Our core supplied products are drip tape and related agricultural covering materials. Pumps, filters, valves, mains and controllers must be engineered and quoted separately. This boundary should be confirmed before ordering.

How do mulch film and weed fabric save water x

Mulch film can reduce exposed-soil evaporation and weed competition in seasonal crops. Permeable weed-control fabric supports longer-term ground management in orchards and nurseries. Neither replaces correct irrigation scheduling or soil monitoring.

What quality items can be checked before shipment x

Inspection can cover diameter, wall thickness, emitter spacing, flow consistency, pressure performance, UV-related requirements, roll length and packaging. ISO 9261 and other agreed methods may be specified where applicable.
